Cultural Center Bubble Diagrams: Designing Dynamic Civic Spaces

Cultural Centers as Civic Anchors

Cultural centers and museums serve as critical civic anchors within communities, providing spaces for exhibition, education, performance, and social gathering. These complex buildings must simultaneously offer compelling visitor experiences, support diverse programming, maintain strict conservation standards, and operate efficiently.

The success of a cultural facility depends on thoughtfully orchestrated spatial relationships that balance sometimes competing needs. A well-developed bubble diagram provides the foundation for resolving these complex requirements before moving into detailed design.

Key Functional Zones in Cultural Center Design

Contemporary cultural centers typically incorporate several distinct functional areas:

  1. Public Welcome Zone: Entry, ticketing, orientation, and visitor services
  2. Exhibition Spaces: Galleries (permanent and temporary), interactive exhibits, and display areas
  3. Performance/Event Areas: Auditorium, flexible event spaces, and lecture halls
  4. Educational Components: Classrooms, workshops, and interactive learning environments
  5. Social Spaces: Café, restaurant, gathering areas, and museum shop
  6. Collection Support: Conservation labs, preparation areas, and collection storage
  7. Administrative Functions: Offices, meeting rooms, and staff facilities
  8. Building Support: Loading, mechanical, security, and maintenance

The organization of these zones and their interrelationships profoundly impact visitor experience, operational efficiency, and programmatic flexibility.

Bubble Diagram Example for a Contemporary Cultural Center

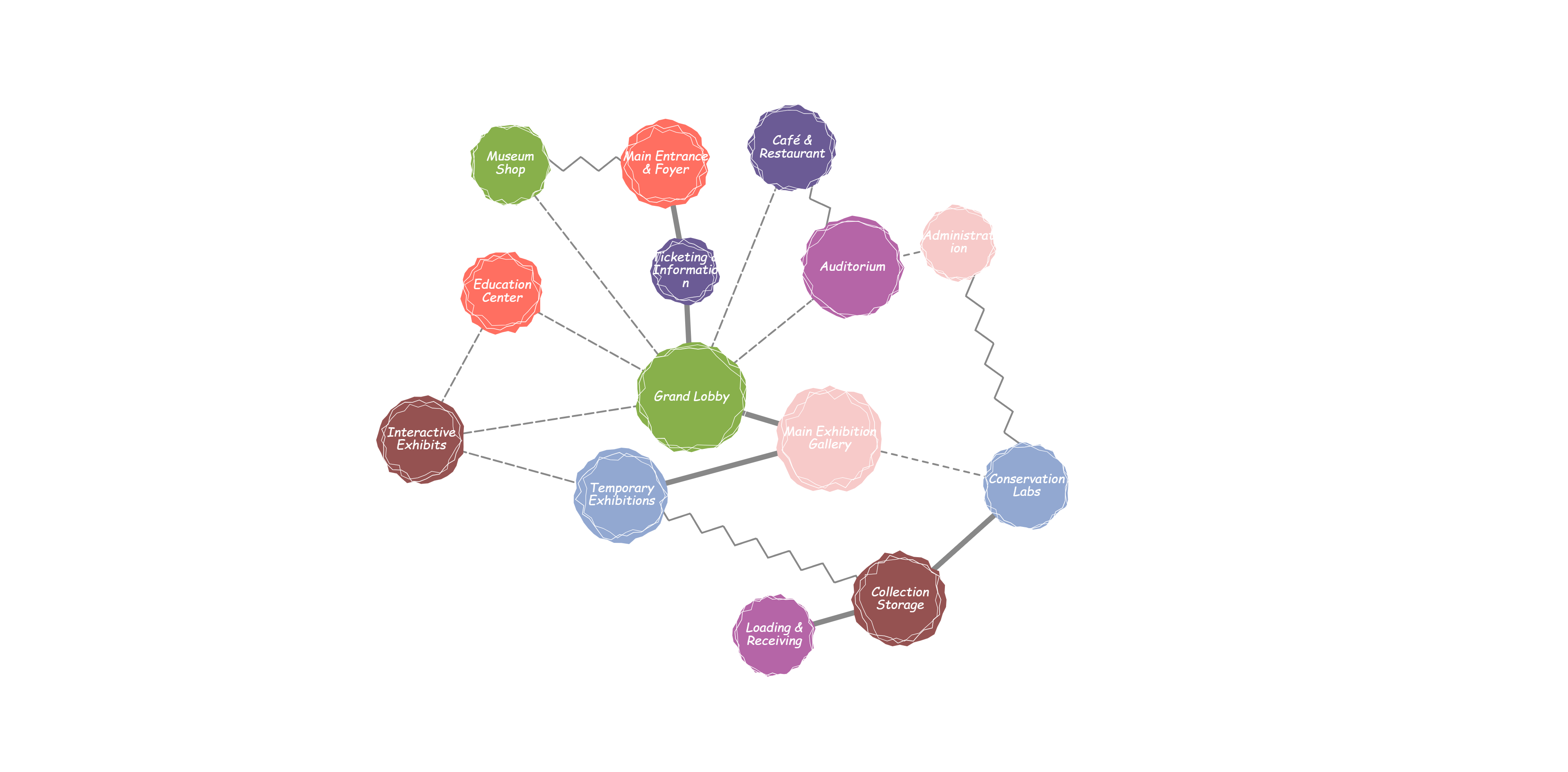

The following bubble diagram illustrates the key spatial relationships for a modern cultural facility:

Bubble Diagram for Cultural Center Design: Public Welcome, Exhibition, Performance, Education, Social, Collection Support, Admin, Building Support zones.

This diagram embodies several essential planning principles for effective cultural center design:

1. Strategic Visitor Sequence

The bubble diagram establishes a clear visitor journey that enhances experience:

  • Welcoming entry sequence with clear wayfinding
  • Intuitive progression through exhibition spaces
  • Strategic placement of amenities (café, shop) to encourage longer visits
  • Careful consideration of visitor flow during peak times
  • Accessible connections between all public areas

2. Exhibition Flexibility and Control

The organization of gallery spaces allows for operational flexibility:

  • Clear hierarchy between primary and secondary exhibition areas
  • Ability to close certain galleries while others remain open
  • Separate routing for temporary exhibitions
  • Appropriate connections to collection support spaces
  • Controlled environmental zones for sensitive artifacts

3. Back-of-House Integration

The diagram thoughtfully connects public and private operational areas:

  • Efficient staff circulation separate from public routes
  • Direct connections between administration and public spaces
  • Appropriate service access to exhibition areas
  • Secure routes for artwork movement
  • Conservation areas with proper relationships to galleries and storage

4. Social Activation

Cultural centers function as community gathering places, and the bubble diagram supports this role:

  • Strategic placement of café and social spaces
  • Multi-purpose areas that can host diverse events
  • Educational facilities that engage different user groups
  • Spaces that function during different operational hours
  • Public areas that work even when exhibition spaces are closed

Translating Cultural Center Bubble Diagrams to Spatial Design

As the design progresses from bubble diagram to schematic layout, several key considerations should guide development:

Managing Visitor Flow

The bubble diagram establishes circulation patterns that should be maintained:

  • Clear primary circulation path through public areas
  • Secondary paths for staff and service functions
  • Efficient routes for moving artworks and exhibitions
  • Strategic locations for vertical circulation
  • Accommodations for peak visitor periods

Creating Memorable Spaces

While bubble diagrams focus on functional relationships, the translation to architecture must consider experiential qualities:

  • Opportunities for dramatic spatial moments
  • Places for pause and reflection within the journey
  • Appropriate transitions between different exhibit zones
  • Control of natural light for both ambiance and conservation
  • Framing of key views both within and outside the building

Supporting Curatorial Flexibility

Exhibition needs evolve over time, requiring adaptable spaces:

  • Gallery configurations that can accommodate different exhibit types
  • Flexible infrastructure for changing technology and display methods
  • Adaptable lighting systems
  • Various ceiling heights and spatial proportions
  • Appropriate load-bearing capacity and mounting options

Key Considerations for Cultural Center Bubble Diagrams

When developing bubble diagrams for cultural facilities, architects must consider several critical factors:

Collection Type and Needs

Different collections have specific requirements:

  • Conservation standards for light, temperature, and humidity
  • Security zones and monitoring requirements
  • Special display needs (interactive, immersive, traditional)
  • Storage and handling considerations
  • Rotating versus permanent exhibitions

Institutional Mission

The organizational mission shapes spatial priorities:

  • Educational focus versus collection presentation
  • Community engagement approach
  • Research and scholarly activities
  • Digital versus physical experience emphasis
  • Revenue generation strategy (café, shop, rental spaces)

Operational Model

Day-to-day operations inform organizational relationships:

  • Staffing levels and locations
  • Ticketing and access control approach
  • Hours of operation for different components
  • Event and programming schedule
  • Maintenance and servicing requirements

Common Mistakes in Cultural Center Bubble Diagrams

When developing bubble diagrams for cultural facilities, architects should avoid these common pitfalls:

  1. Neglecting back-of-house needs: Undersizing critical support spaces for collections and operations
  2. Inflexible exhibition layouts: Creating galleries that can't adapt to changing exhibition needs
  3. Poor service access: Failing to provide efficient routes for artwork movement and installation
  4. Inadequate visitor amenities: Underestimating needs for restrooms, coat check, and visitor services
  5. Overly complex circulation: Creating confusing wayfinding that frustrates visitors

Implementing Your Cultural Center Bubble Diagram

When creating a bubble diagram for a cultural facility, begin with a thorough programming document that defines:

  • The specific collection requirements and exhibition approach
  • Anticipated visitor numbers and flow patterns
  • Educational and outreach programming needs
  • Special events and revenue-generating activities
  • Conservation and preservation standards

These programmatic elements will inform the size relationships and critical adjacencies in your bubble diagram.

With a thoughtfully developed bubble diagram as your foundation, your cultural center design can more effectively balance visitor experience, operational efficiency, and curatorial requirements while creating a compelling civic destination.
